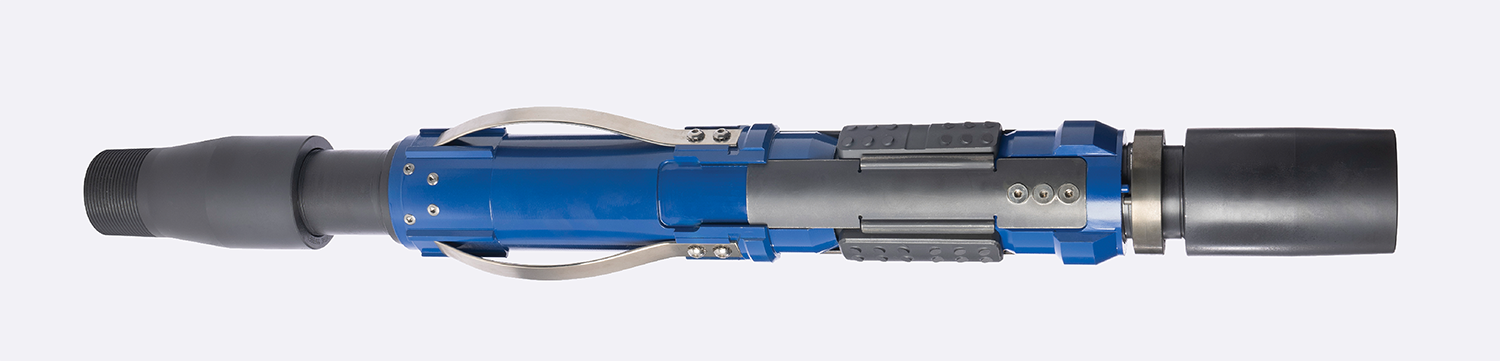

5.5″ Slimline® Full Bore™ TAC
2.40" ID
3.870" Flow-by OD 4.50" Max OD
Applicable Casing Weights: 13 - 23 ppf
Search By Part
Search By Anchor
Parts List
| # | Part # | Image | Name | Quantity | |
|---|---|---|---|---|---|
| 0 | 55SFBBD |
 |
5.5″ Slimline Full Bore Body | ||
| 0 | 55SFBBD-RH |
|
5.5″ Slimline Full Bore Body, Right Hand | ||
| 0 | 55SFBBS |
 |
5.5″ Slimline Full Bore Bottom Sub, 2 7/8″ | ||
| 0 | 55SFBTS |
 |
5.5″ Slimline Full Bore Top Sub, 2 7/8″ | ||
| 0 | 55SFBUC |
 |
5.5″ Slimline Full Bore Upper Cone | ||
| 0 | 55SFBUC-RH |
 |
5.5″ Slimline Full Bore Upper Cone, Right Hand | ||
| 0 | 55SFBLC |
 |
5.5″ Slimline Full Bore Lower Cone | ||
| 0 | 55SFBLC-RH |
 |
5.5″ Slimline Full Bore Lower Cone, Right Hand | ||
| 0 | 55SFBLCS |
 |
5.5″ Slimline Full Bore Lower Cone Sleeve | ||
| 0 | 55SFBLCS-RH |
 |
5.5″ Slimline Full Bore Lower Cone Sleeve, Right Hand | ||
| 0 | 55SFBBNS |
 |
5.5″ Slimline Full Bore Body Nut Screw | ||
| 0 | 55SFBBN |
 |
5.5″ Slimline Full Bore Body Nut | ||
| 0 | 55SFBBN-RH |
|
5.5″ Slimline Full Bore Body Nut, Right Hand | ||
| 0 | 55SFBSL-C |
 |
5.5″ Slimline Full Bore Slip Carbide | ||
| 0 | 55SFBSP |
 |
5.5″ Slimline Full Bore Slip Spring | ||
| 0 | 55SFBPIN |
 |
5.5″ Slimline Full Bore Shear Screw | ||
| 0 | 55SFBSR |
 |
5.5″ Slimline Full Bore Slip Retainer | ||
| 0 | 55SFBSRS |
 |
5.5″ Slimline Full Bore Slip Retainer Screw | ||
| 248 | 55SDSW |
 |
Drag Spring Star Washer, Small | ||
| 306 | 55SDS1 |
 |
4.5″ Standard / 5.5″ Slimline Drag Spring (1/8″ Thick) |
