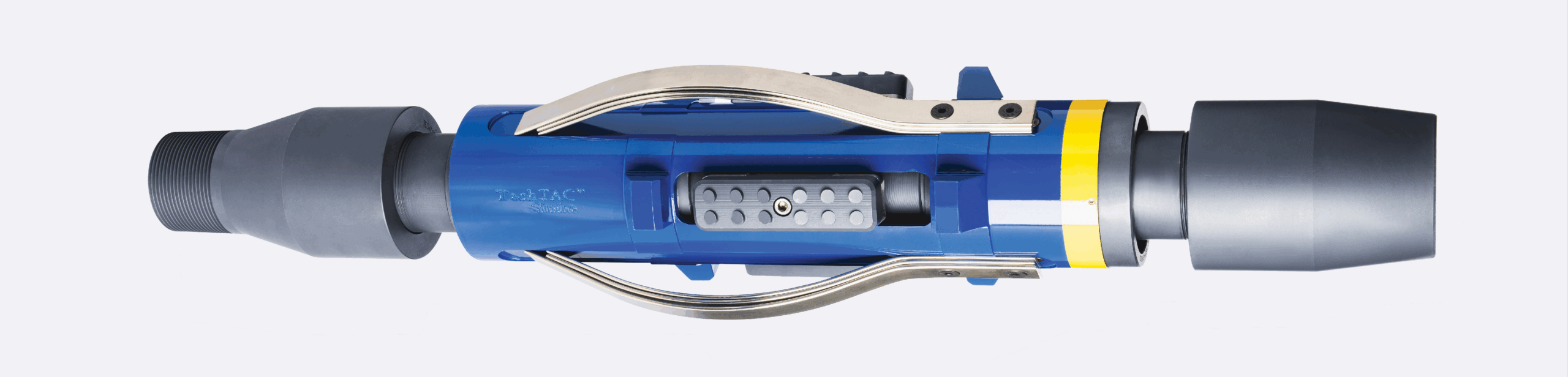

7 5/8″ Slimline® TAC

2.40" ID 4.50" Flow-by OD 6.40" Max OD

7.625" Slimline TAC

Search By Part

Search By Anchor

Parts List

# Part # Image Name Quantity
26 70STFD-3 7.0" Slimline Top Flow Deflector (Top Sub), 2 3/8" 7.0″ Slimline Top Flow Deflector (Top Sub), 2 3/8″
2-3/8 connection
27 70STFD 7.0" Slimline Top Flow Deflector (Top Sub), 2 7/8" 7.0″ Slimline Top Flow Deflector (Top Sub), 2 7/8″
59 70SBD 5.5" Standard / 7.0" Slimline Body 5.5″ Standard / 7.0″ Slimline Body
61 70SBD-HD-RH 5.5" Standard / 7.0" Slimline Body, HD (2.0" ID), Right Hand 5.5″ Standard / 7.0″ Slimline Body, HD (2.0″ ID), Right Hand
Right Hand
63 70SBD-HD 5.5" Standard / 7.0" Slimline Body, HD (2.0" ID) 5.5″ Standard / 7.0″ Slimline Body, HD (2.0″ ID)
65 70SBD-RH 5.5" Standard / 7.0" Slimline Body, Right Hand 5.5″ Standard / 7.0″ Slimline Body, Right Hand
Right Hand
95 70SCP-NS 70SCP-NS 5.5″ Standard / 7.0″ Slimline Cap, Non Split
95 70SCP 5.5" Standard / 7.0" Slimline Cap 5.5″ Standard / 7.0″ Slimline Cap
96 70SCS-NS 70SCS-NS 5.5″ Standard / 7.0″ Slimline Cap Screw, Non Split
96 70SCS Cap screw 5.5″ Standard / 7.0″ Slimline Cap Screw
125 55BNS Body nut screw 4.5″ Standard / 7.0″ Slimline Body Nut Screw
135 70SBN 5.5" Standard / 7.0" Slimline Body Nut 5.5″ Standard / 7.0″ Slimline Body Nut
139 70SBN-RH 5.5" Standard / 7.0" Slimline Body Nut, Right Hand 5.5″ Standard / 7.0″ Slimline Body Nut, Right Hand
Right Hand
152 55SPP 4.5" Standard / 7.0" Slimline Pipe Plug 4.5″ Standard / 7.0″ Slimline Pipe Plug
156 758SHO 7 5/8" Slimline Housing 7 5/8″ Slimline Housing
165 70SHG 7.0" Slimline Housing Guide 7.0″ Slimline Housing Guide
166 70SHGS 7.0" Slimline Housing Guide Screw 7.0″ Slimline Housing Guide Screw
189 758SDSC 7 5/8" Slimline Drag Spring Screw (Triple) 7 5/8″ Slimline Drag Spring Screw (Triple)
229 70SUC 5.5" Standard / 7.0" Slimline Upper Cone 5.5″ Standard / 7.0″ Slimline Upper Cone
232 70SUC-RH 5.5" Standard / 7.0" Slimline Upper Cone, Right Hand 5.5″ Standard / 7.0″ Slimline Upper Cone, Right Hand
Right Hand
252 758SSLS 758SSLS 7 5/8″ Slimline Slip Screw
252 758SSL-I 758SSL-I 7 5/8″ Slimline Slip, Inside
252 758SSL-O 758SSL-O 7 5/8″ Slimline Slip Wicker, Outside
252 758SSL-CO 758SSL-CO 7 5/8″ Slimline Slip Carbide, Outside
259 70SSSP 7.0" Slimline Slip Spring 7.0″ Slimline Slip Spring
280 55DS1 5.5" Standard / 7.0" Slimline Drag Spring, Outer 5.5″ Standard / 7.0″ Slimline Drag Spring, Outer
281 55DS2 5.5" Standard / 7.0" Slimline Drag Spring, Inner 5.5″ Standard / 7.0″ Slimline Drag Spring, Inner
330 70SLC 5.5" Standard / 7.0" Slimline Lower Cone 5.5″ Standard / 7.0″ Slimline Lower Cone
332 70SLC-RH 5.5" Standard / 7.0" Slimline Lower Cone, Right Hand 5.5″ Standard / 7.0″ Slimline Lower Cone, Right Hand
Right Hand
371 70SLCS 5.5" Standard / 7.0" Slimline Lower Cone Sleeve 5.5″ Standard / 7.0″ Slimline Lower Cone Sleeve
372 70SLCS-RH 5.5" Standard / 7.0" Slimline Lower Cone Sleeve, Right Hand 5.5″ Standard / 7.0″ Slimline Lower Cone Sleeve, Right Hand
Right Hand
381 55PIN Shear Pin, Tubing Anchor Catcher (5K Lbs Per Pin {+/- 10%}, Avg 40K Shear) Shear Pin, Tubing Anchor Catcher (5K Lbs Per Pin {+/- 10%}, Avg 40K Shear)
386 70SBFD-3 7.0" Slimline Bottom Flow Deflector 2 3/8" 7.0″ Slimline Bottom Flow Deflector 2 3/8″
2-3/8 connection
387 70SBFD 7.0" Slimline Bottom Flow Deflector 2 7/8" 7.0″ Slimline Bottom Flow Deflector 2 7/8″
