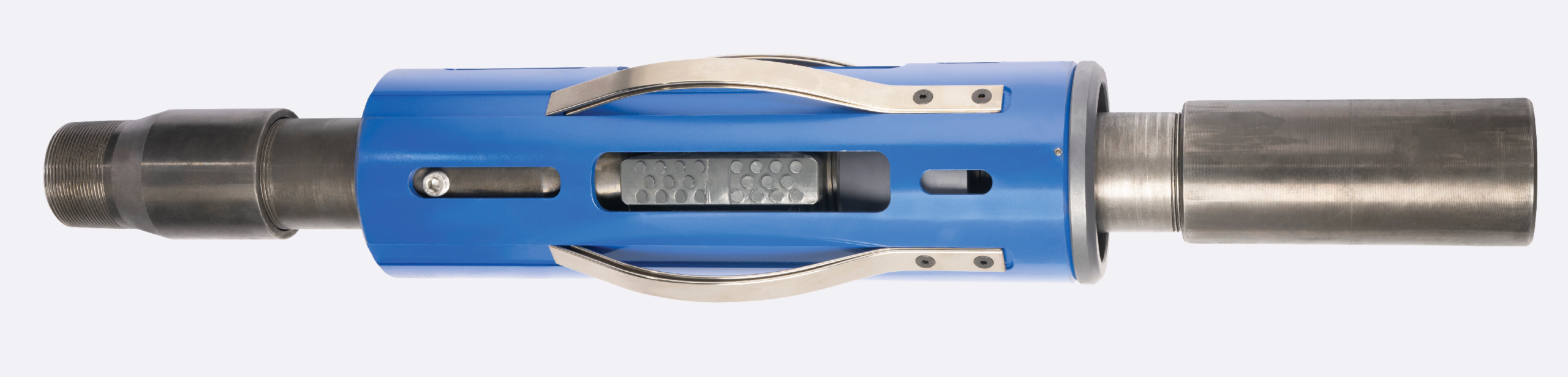

8 5/8″ Standard B2 TAC
3.0" ID
7.0" Flow-by OD 7.0" Max OD
Applicable Casing Weights: 23 - 49 ppf
Search By Part
Search By Anchor
Parts List
| # | Part # | Image | Name | Quantity | |
|---|---|---|---|---|---|
| 0 | 958UC |
 |
9 5/8″ Standard Upper Cone | ||
| 0 | 958TS |
 |
9 5/8″ Standard Top Sub 3.50″ | ||
| 0 | 958SSP |
 |
9 5/8″ Standard Slip Spring | ||
| 0 | 858SL-C |
 |
8 5/8″ Standard Slip Carbide | ||
| 0 | 958LCS |
 |
9 5/8″ Standard Lower Cone Sleeve | ||
| 0 | 958LC |
 |
9 5/8″ Standard Lower Cone | ||
| 0 | 858HO |
 |
8 5/8″ Standard Housing | ||
| 0 | 958CS |
 |
9 5/8″ Standard Cap Screw | ||
| 0 | 958CP |
 |
9 5/8″ Standard Cap | ||
| 0 | 958BS |
 |
9 5/8″ Standard Bottom Sub 3.50″ | ||
| 0 | 958BN |
 |
9 5/8″ Standard Body Nut | ||
| 0 | 958BD |
 |
9 5/8″ Standard Body | ||
| 166 | 70SHGS |
 |
7.0″ Slimline Housing Guide Screw (9 5/8″ TAC) | ||
| 189 | 758SDSC |
 |
7 5/8″ Slimline Drag Spring Screw, Triple (9 5/8″ TAC) | ||
| 280 | 55DS1 |
 |
5.5″ Standard / 7.0″ Slimline Drag Spring, Outer (9 5/8″ TAC) | ||
| 281 | 55DS2 |
 |
5.5″ Standard / 7.0″ Slimline Drag Spring, Inner | ||
| 330 | 958HG |
 |
9 5/8″ Standard Housing Guide | ||
| 333 | 70PP |
 |
7.0″ Standard Pipe Plug (9 5/8″ TAC) | ||
| 500 | 958PIN |
 |
9 5/8″ Standard Shear Pin (5K Lbs Per Pin {+/- 10%}, Avg. 50K Shear) |
