In artificial lift operations, equipment longevity is a key of profitability. When relying on sucker-rod pumps, operators may face constant battles against mechanical wear, gas interference, and downhole debris. While many focus solely on upgrading the pump itself, the secret to truly maximizing pump life often lies in a critical, supporting downhole component: the tubing anchor catcher (TAC).
However, not all TACs are created equally. To truly protect your pump and maximize its operational lifespan, choosing an advanced solution like the Slimline® Tubing Anchor Catcher from TechTAC® can be an operational game-changer.
The Role of a TAC in Maximizing Pump Life

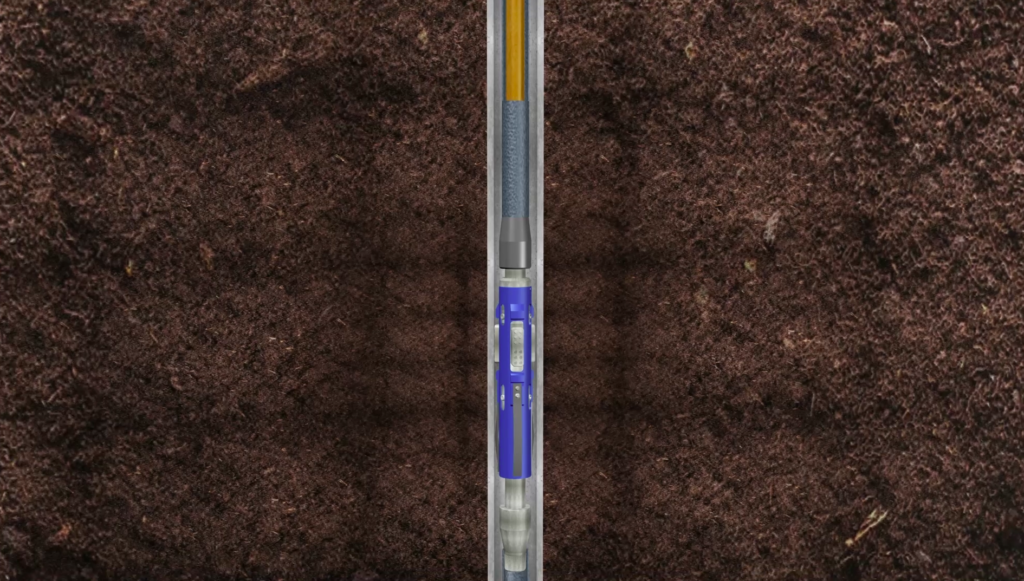

A traditional tubing anchor catcher serves a vital dual purpose. First, it securely anchors the production tubing string to the casing, eliminating the axial (vertical) movement caused by the cyclical compression and tension loads of the rod pump. Second, it acts as a safety catcher, preventing parted tubing from dropping to the bottom of the well.
By stabilizing the tubing string, a tubing anchor directly extends pump life in several ways:
- Maintains Consistent Plunger Travel: Eliminating tubing breathing ensures the pump plunger achieves its full intended stroke length, optimizing pump fillage.
- Reduces Fluid Pound: Better pump fillage minimizes fluid pounding – a violent phenomenon that can destroy downhole pump components, fracture rod strings, and ruin surface equipment.
- Mitigates Mechanical Wear: Restricting tubing movement reduces friction between sucker rods, tubing, and casing, preventing premature wear.
The “Choke Point” Problem of Standard Anchors
Despite these baseline benefits, traditional standard B2-style anchors introduce a new set of complications that can actively cut a rod pump’s life short.
A standard B2 anchor has an outside diameter (OD) that is nearly as large as the casing’s inside diameter. This creates an incredibly narrow annular area – a severe “choke point” when placed above the pump intake. According to an independent computational fluid dynamics (CFD) study, this small annular area also generates a more turbulent fluid flow and a net pressure drop around a standard B2 anchor that is more than double that of optimized designs.
This dramatic pressure drop and localized turbulence can lead to two significant pump-damaging issues:
- Gas Locking: The restriction traps formation gas below the anchor. Instead of moving to the surface, this built-up gas can enter the pump intake and cause severe gas interference or even gas locking.

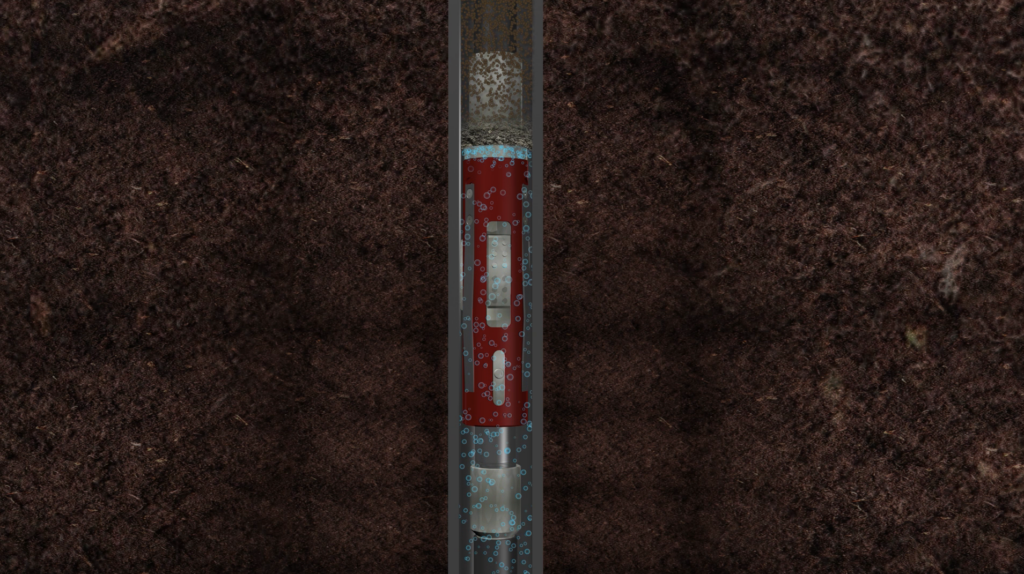

- Debris and Scale Accumulation: The choke point acts as a “shelf” where sediment can settle. Over time, this debris bridges off, cementing the anchor in place and choking fluid flow to the pump, starving it and accelerating mechanical failure. In addition, the change in pressure around the anchor creates an environment that is ripe for the precipitation of scale, iron sulfide, and paraffin.
Maximizing Pump Life with the Slimline TAC

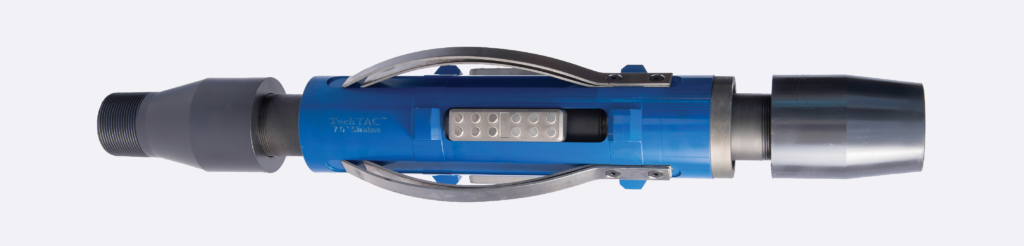

To eliminate these failure modes and maximize pump life, TechTAC engineered the innovative Slimline Tubing Anchor Catcher.
By reducing the tool’s outside diameter without compromising its anchoring strength, the Slimline TAC increases the flow-by capacity in the well’s annulus by up to 245% compared to a standard B2 anchor.
This expanded flow-by area directly protects the downhole pump by allowing formation gas to break out freely and stream up the annulus rather than being forced into the pump intake. Furthermore, the Slimline anchor features uniquely engineered tapered flow deflectors on both the top and bottom. This hydrodynamic, tapered design helps to mitigate the risk of sediment building up on top of the tool.
Invest in Your Pump’s Future
Maximizing pump life requires looking beyond the rod pump itself. The choke point often created by an outdated anchor design can continuously sabotage your pump. By upgrading to the TechTAC Slimline TAC, you can eliminate that restriction, mitigate gas locking, prevent scale build-up, and ensure a stable, smooth pumping cycle. To learn more about the Slimline TAC, contact the TechTAC team or call 435-781-1675
